• You can operate on one computer to use operation panel of CNC machine tools to perform transmission and reception of NC programs (DNC operation, memory input and output) in network-based DNC system.

Feature

• The general LAM cable is adopted in the network-based system, so multiple CNC machine tools can be connected at low cost. In addition, it is not necessary to place a computer on the field.

  * 128 machines can be connected at most.

•

• Basic command- download command「/R」to input NC programs to NC.

•

• - upload command「/P」to the computer to save NC programs.

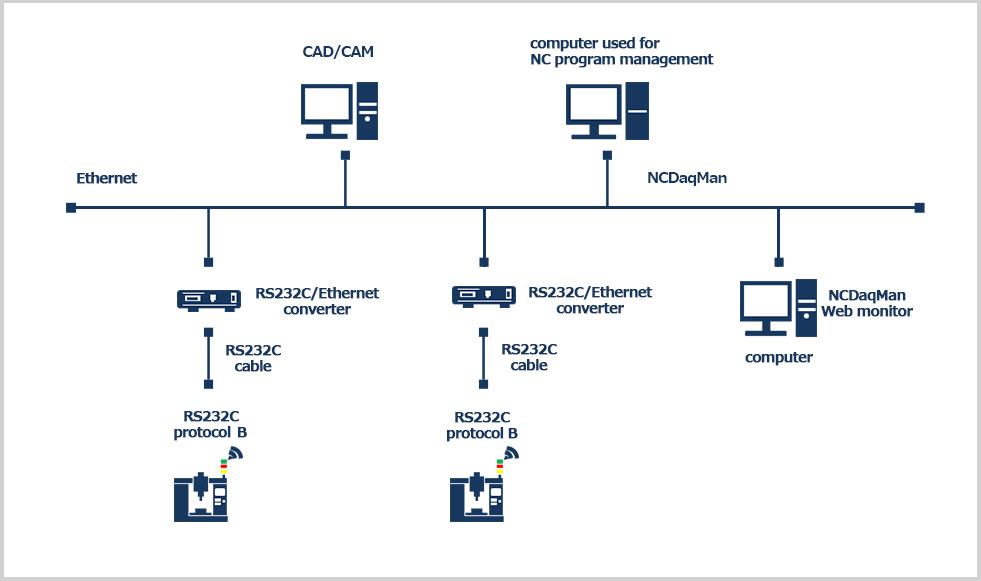

System composition image

•

Benefits of the new system

• • The operation panel of CNC machine tools is used to reduce workload of the operator.
  • The general LAN cable is used to reduce the cost.
  • The operator can monitor the machine operation via computer web.
  • high-speed transfer of high capacity of NC programs
•

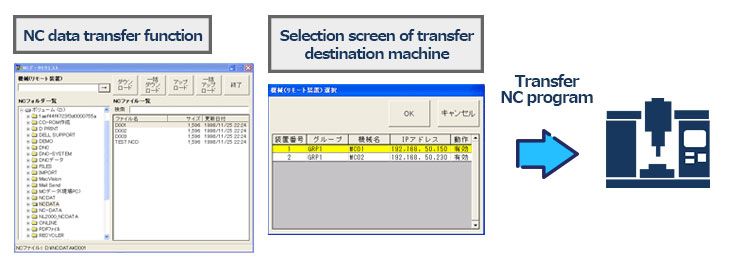

NC data transfer function

•

• In terms of key board specifications of CNC machine tools, you can input address key with limit, so NCDaqMan can support the function that the computer transfers the NC programs.

Basic command list

• The request command is the processing command sent from CNC device to this system (NCDaqMan).

  command name	command form	command description

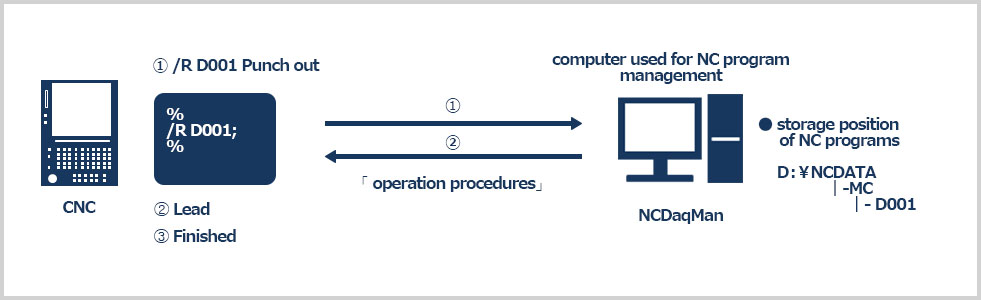

  download	/R	input programs to CNC

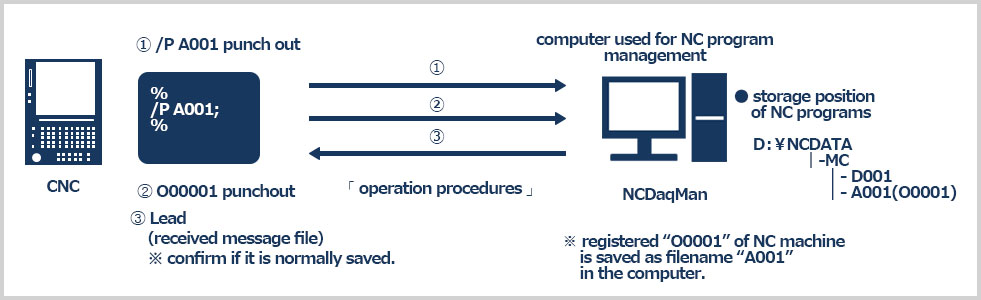

  upload	/P	output programs to computer
  cancel	/CA	cancel communication line
  NC folder change	/CD	specified folder
  file list	/DIR	refer to files in the folder
